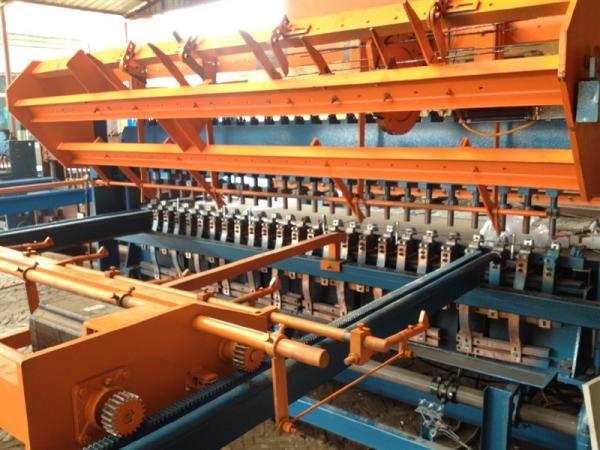

Easy To Operate Full Automatic Economy Panel Mesh Welding Machine
fence mesh welding machine
| Model | DZ2500 | Welding speed | 40 -65times/min |
| Wire diameter | 2.5-6mm | Welding electrodes | 48pcs |
| Longitude wire space | 50-300mm | Longitude wire feeding | Pre-straightened&pre-cut |
| Cross wire space | 25-300mm | Cross wire feeding | Pre-straightened&pre-cut |
| Mesh width | Max.2.5m | Overall Size | 8.4*3.1*1.7m |
| Rated electrical power | 85kva*6 pcs | Weight | 4200kg |
Note:The line wires and cross wires should be pre-straightened and pre-cut.
Performance characteristics
The panel mesh welding machine adopts synchronous control technology. The welding time and sub-control welding are both composed of PLC digital programming system. The input panel is touch screen or button. The operation is more intelligent and rational. The advantage of this machine is that wefts and wefts of different sizes can appear on the same mesh. The welding machine adopts a new high-efficiency transformer, and the gear can be divided into eight levels, which expands the range of welding wire diameter. Easy to operate, high flexibility, output is several times that of manual single spot welding machine.
The fence material: PVC wire, stainless steel wire, high-quality low-carbon steel wire, galvanized wire, iron wire, steel wire, etc.
Fence characteristics:
1. The product structure is simple and less materials are used, so the project cost is low;
2. Very convenient for remote transportation;
3. The bottom of the fence and the brick-concrete wall are integrated into one body, which effectively overcomes the weakness of the insufficient rigidity of the net and enhances the protection
Auxiliary machine:Straightening and cutting machine
